BAUDER - PIR PLUS 180mm sloping roof thermal insulation
BAUDER - PIR PLUS 180mm sloping roof thermal insulation

BAUDER - PIR PLUS 180mm sloping roof thermal insulation

57.62€
Tax included

The price shown is for 1

Total to be paid
Quantity

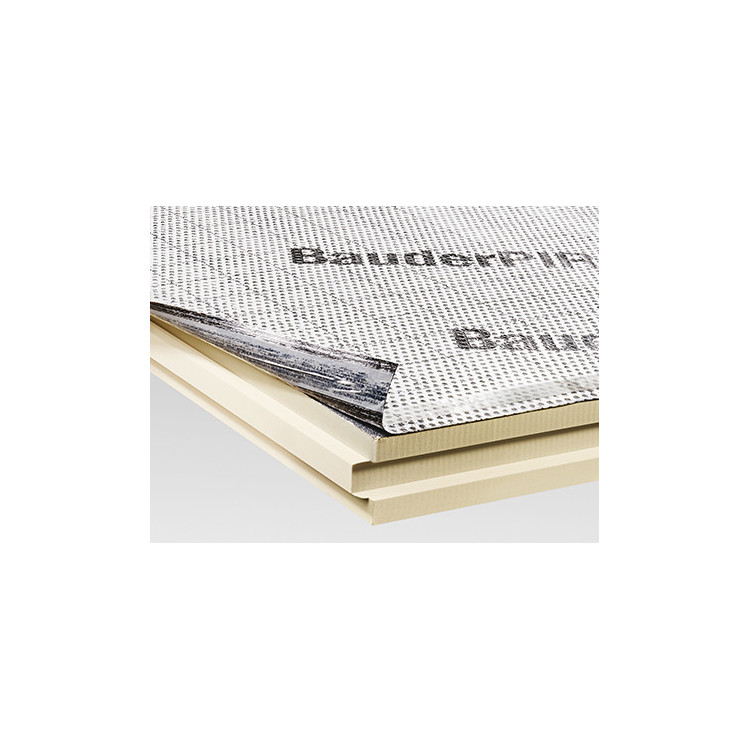

Thermal insulation component for pitched roofs for direct installation on rafters or wooden boarding.
wooden formwork. Tested for the effects of hail at SKZ Würzburg and the effects of heavy rain at Technical UNI Berlin.

Nortia -TEAM-.

Partnerský program pro nejlepší zákazníky.

Zákaznický servis

Máte dotaz? Velmi rádi vám ho zodpovíme.

Zásady doručení

Dodáváme po celé EU

Technical data:

Top layer Aluminum; with additional waterproofing layer of modified asphalt tape and non-slip overlays
Bottom covering layer

Aluminum
Edge plate Tongue and groove, around the perimeter
Length 1800 mm (outside dimension)
1780 mm (inside dimension)
Width 1,200 mm (outside dimension)
1,180 mm (built-in dimension)
Fire performance Class E
Thermal conductivity coefficient
λ 0.022 W/m.K

Please refer to the product sheet for detailed information.

Thickness U-values Product code
80 mm 0.28 W/(m2K) 4038 0080
100 mm 0,23 W/(m2K) 4038 0100
120 mm 0,19 W/(m2K) 4038 0120
140 mm 0,16 W/(m2K) 4038 0140
160 mm 0.14 W/(m2K) 4038 0160
180 mm 0.13 W/(m2K) 4038 0180
200 mm 0.12 W/(m2K) 4038 0200
